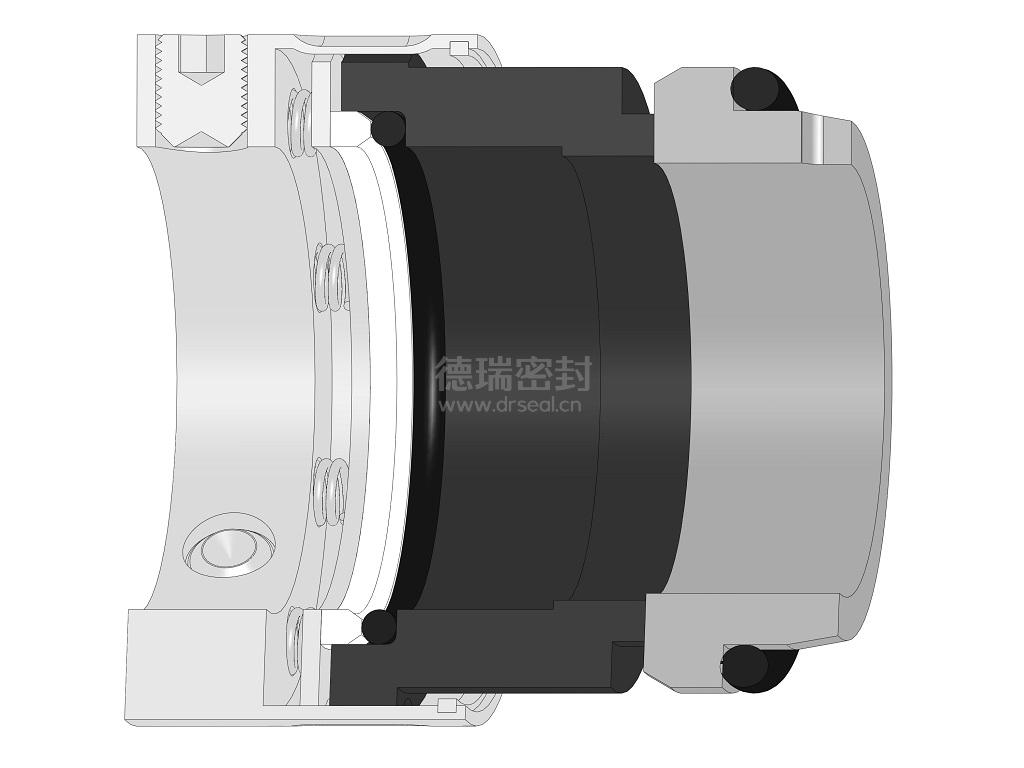

PM2 type single end small spring mechanical seal

Technical features:

1. Single end rotating spring mechanical seal;

2. High strength and high-performance sealing materials can be selected according to the working environment to achieve optimal performance;

3. Balanced design, precise design of end face pressure ratio, reducing end face load, and minimizing heat generation on the sealing surface;

4. Rotating multi spring design, uniform spring pressure, maintaining sealing end face fit, ensuring sealing effect;

5. Use a large cross-sectional area sealing ring to maintain the sealing float and improve the sealing performance;

6. The floating ring component is pre installed as a whole, with reliable transmission and easy installation;

7. Rotate in any direction to effectively avoid human errors;

8. Flexible and versatile structure and material pairing, widely used;

9. The product design complies with DIN24960 and EN12756 standards.

典型应用：

推荐应用在干净、低腐蚀性化学产品和其他带旋转轴的工况设备。

 适用介质：

适用于清水，一般化工溶液，弱酸、碱、盐、制冷剂及含少量颗粒介质的溶液。

性能参数：

- 压  力：0~8.0MPa

- 温  度：-50~220℃

- 线速度：≤20m/s

材料选择：

- 金属材料:1Cr13、304、316L、2205、2507

- 弹性元件:316L、Hastelloy "C"

- 密 封 环：SSiC、WC、Graphite

- 密 封 圈：FKM、FFKM、EPDM、NBR、OMNISEA L
